Jain Lateral Drain Valve

Features and Specifications:

• Drains off dirt / garbage from the lateral while starting and stopping of irrigation cycle.

• Stainless steel spring and EPDM seal ensure perfect sealing to provide efficient service.

• UV stabilised.

• No environmental effects.

• Minimises maintenance of drip system by automatically flushing the laterals.

• Positive sealing at 0.3 kg/cm² pressure.

• Acts as an air release valve which releases air at the start up and breaks vacuum at the shut off.

• Available in various inlet connections.

Application:

• Used as an end stop that automatically flushes lateral lines in drip irrigation systems.

• Reduces chances of dripper clogging.

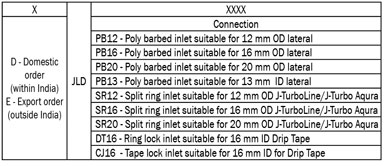

Ordering Specifications:

Example: DJLDPB16 - This code represents Jain Lateral Drain Valve with poly barbed inlet suitable for 16mm OD polytube.
