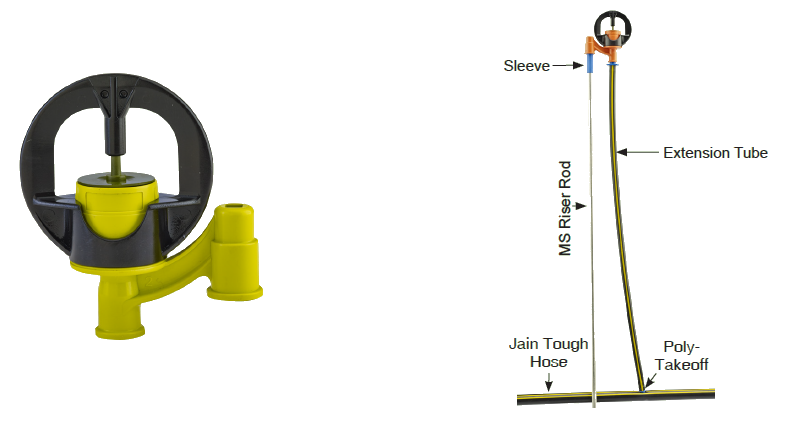

2005 AquaMaster

Features and Specifications:

• The most economical solution for under tree and overhead irrigation.

• Extra-long range.

• Particularly suitable for widely-spaced plantations. (such as walnut, almond, avocado and mango).

• Uniform coverage over a wide range of spacing, flow rates and pressures.

• Suitable also for overhead irrigation on Rainport system for vegetables and nurseries (up to 6 x 6 m spacing).

• Innovative structure for improved durability, performance and insect protection.

• Unique water spreader for optimum distribution, maximum range and fine droplets.

• Operating pressure: 1.5 to 3.0 kg/cm² (21.33-42.66 psi).

• Discharge: 30 to 365 lph.

• Diameter coverage: 5.5 to 13.0 m.

• Filtration requirement:
  - 130 micron for purple and brown nozzles.
  - 200 micron for other nozzles.

Performance Table for Rainport™ Application:

Note:Tested at 0.6 m height and 2.0 kg/cm² pressure

Colour code - Distribution uniformity

CU < 85%

CU = 85-88%

CU = 88-92%

CU > 92%

Flow rates and wetted diameter:

Note : Tested at 0.25 m height

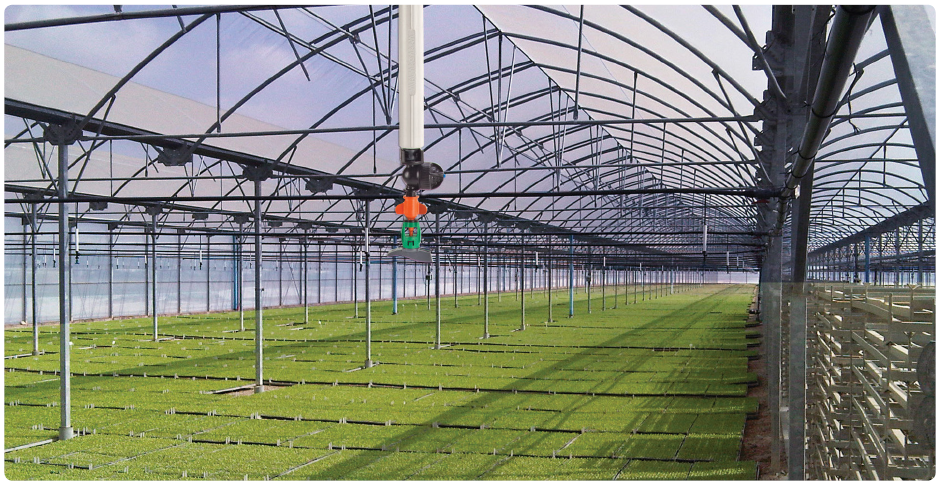

Inverted model - Flow rates and wetted diameters

Note : Tested at 1.80 m height

Ordering Specifications:

Example: D219548 - This code represents 2005 AquaMaster with green swivel, black nozzle and 3/8” threaded housing.
