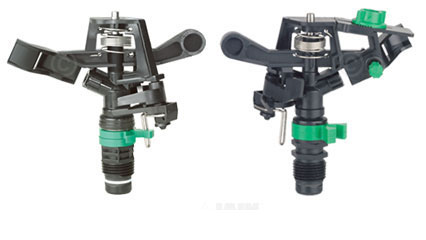

427G AG / 427B AG

Features and Specifications:

  • Full and part circle plastic impact sprinkler, 1/2” male or 3/4” female threaded connection.

  • High water distribution with spacing up to 14 m.

  • Colour-coded bayonet nozzles for easy service.

  • Integrated stream-straightening vane for maximum range.

  • High impact heavy-duty plastic materials provide resistance to corrosion, chemicals and UV radiation.

  • For efficient irrigation of field edges.

  • On demand, can also be supplied with deflector shield and diffuser screw control distance and stream pattern (427G AG).

  • User friendly, finger tip adjustment to full or part circle mechanism.

Applications

  • Recommended for irrigation and germination of leafy vegetables, potatoes, flowers and nursery crops, etc.

  • Used with Rainport™ - PS assembly.

Technical Specifications:

Nozzle
mm/colour
Pressure
kg/cm²
Discharge
m³/hr
Diameter
m
2.8
Orange
2.0 0.450 22.0
3.0 0.550 23.0
4.0 0.630 24.0
3.0
Red
2.0 0.510 23.0
3.0 0.630 24.0
4.0 0.720 25.0
3.2
Green
2.0 0.570 23.0
3.0 0.700 24.0
4.0 0.810 26.0
3.5
Blue
2.0 0.660 23.0
3.0 0.810 24.0
4.0 0.930 26.0
4.0 *
Black
2.0 0.850 24.0
3.0 1.030 26.0
4.0 1.180 26.0

* Standard nozzle

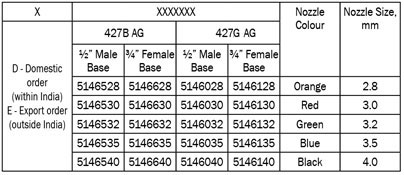

Ordering Specifications:

Example: D5146528 - This code represents 427B AG part circle sprinkler with orange nozzle.
