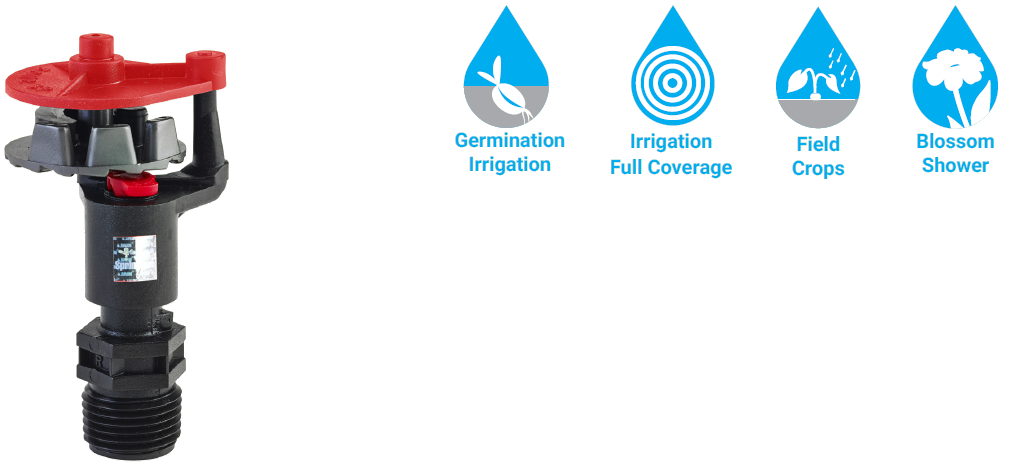

502-H - Turbo Hammer Medium Volume Sprinkler

Features and Specifications:

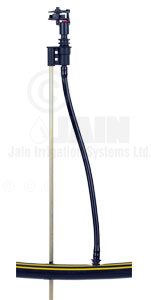

  • Turbo hammer medium-volume sprinkler mounted on Rainport™ - PS assemblies.

  • Excellent water distribution.

  • Fine water droplets for delicate irrigation of all crops.

  • Full circle.

  • 1/2” BSP male threaded inlet.

  • Minimum filtration requirement - 100 micron.

Applications

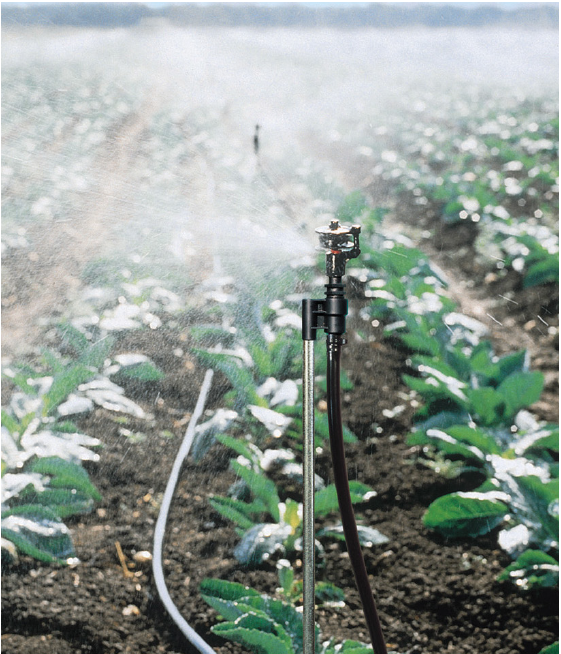

  • Overhead irrigation for extra-range spacings up to 8 m.

Technical Specifications:


Nozzle
mm/colour		 Pressure
kg/cm²		 Discharge
m³/hr		 Diameter
m		 Precipitation (mm/h) / Spacing (m)
8 x 8 8 x 9 9 x 9 9 x 10 10 x 10
2.5
Red		 1.5 0.226 13.0 3.5 3.1 2.8 2.5 2.3
2.0 0.263 15.0 4.1 3.5 3.2 2.9 2.6
2.5 0.292 15.5 4.6 4.0 3.6 3.2 2.9
3.0 0.318 16.5 5.0 4.4 3.9 3.5 3.2
3.5 0.345 17.0 5.4 4.8 4.2 3.8 3.4

Colour code - Distribution uniformity

CU < 85%

CU = 85-88%

CU = 88-92%

CU > 92%

Ordering Specifications:
