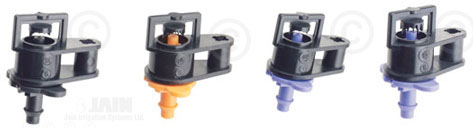

Turbo-Jet

Features and Specifications:

• Ray jet for orchard, vineyard and landscape irrigation.

• Static, low maintenance jet.

• High clogging resistance.

• Diverse distribution patterns and wetted diameters.

• Easy to open and clean.

• Unique nozzle structure forms turbulent flow and wide water pathways even at low flow rates, for high clogging resistance.

• Large number of nozzle and spreader combinations provides wide selection of flow rates and distribution patterns.

• Flow rates: 16 - 110 lph.

• Filtration requirements,
  – Black, orange and blue nozzles: 130 microns.
  – Violet, green and red nozzles: 200 microns.

• Operating pressures: 1.0 - 3.5 kg/cm² (14.22 - 49.77 psi).

Applications:

• Recommended for irrigation of wide spread root zone crops.

Distribution patterns and diameters (m)

Tested at 1.4 & 2.0 kg/cm², 0.25 m height

Nozzle Colour	Static Spreaders
	Strip		300º		12 jets		16 jets		20 jets		180º (radius)		Inverted*		Flat (no jets)
Pressure kg/cm²	1.4	2.0	1.4	2.0	1.4	2.0	1.4	2.0	1.4	2.0	1.4	2.0	1.4	2.0	1.4	2.0
Black	2.7	3.0	3.2	3.8	3.4	4.1	3.1	4.2	3.4	3.2	1.5	2.2	2.8	3.0	2.2	2.2
Orange	3.0	3.7	4.0	4.4	4.3	4.7	4.0	5.6	3.6	4.0	1.8	2.3	3.2	3.8	2.3	2.4
Blue	3.7	4.2	4.8	5.6	4.6	4.9	4.2	6.0	3.8	4.4	2.2	2.4	3.8	4.8	2.4	2.6
Violet	4.2	5.4	5.0	5.8	4.8	5.2	4.3	6.0	4.0	5.0	2.2	2.5	4.6	5.2	2.6	3.0
Green	4.2	5.4	5.4	6.0	5.2	5.9	4.5	6.2	4.2	5.4	2.3	2.7	4.9	5.4	2.8	3.2
Red	4.8	6.1	6.6	7.6	5.6	6.6	5.4	7.2	5.0	6.2	2.4	2.8	5.2	5.8	3.0	3.4

Note : Tested at 0.6 m height.

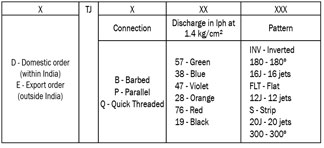

Ordering Specifications:

Example: DTJB28300 - This code represent Turbo Jet with 300º pattern, barbed connections with orange 28 lph nozzle.

Technical Specifications - Flow rates by nozzle (lph)
