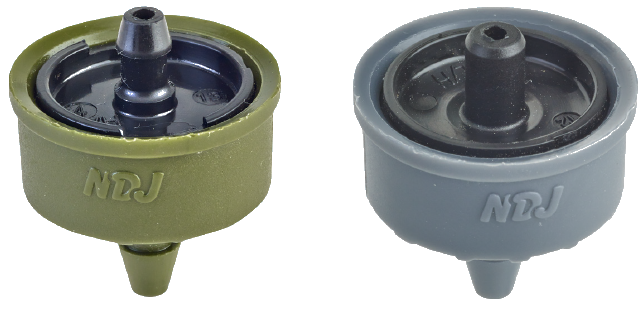

Click Tif

Features and Specifications:

• Chemical-resistant high-grade plastic material for precision, durability and longevity.

• The dripper design integrates three elements to minimize clogging.
  – Protected cross-shaped water inlet.
  – Flushing mechanism of regulating diaphragm.
  – Strong turbulent flow in labyrinth with continual cleaning and flushing.

• Large water passages.

• Two models are available: PC and PC CNL (anti-drainage).

• Colour-coded for identification of discharge and model

– PC+ CNL: Light brown housing
– PC: Black housing
– 2.0 lph: Brown cover
– 3.0 lph: Blue cover
– 4.0 lph: Black cover
– 8.0 lph: Green cover
– 12.0 lph: Red cover


• Standard 5 mm extension for connection of extenstion tube.

• Wide and precise regulating range from 0.5 to 4.0 kg/cm²
  (7.11 to 56.88 psi).

• Nominal discharge: 2.0, 3.0, 4.0, 8.0, 12.0 lph.

• CVm: less than 4%.

• Prevents low head drainage (CNL model).
  – Opening pressure: 4.0 m
  – Closing pressure: 2.0 m

• Maximum lateral Length (m) on flat ground.

• Precise irrigation in soilless culture growing conditions and pulse irrigation.

• Protection against woodpeckers and animals.

• Can be used for subsurface installation.

• On demand Click Tif can also be supplied with anti-bug cap option for protection against bugs.

• On demand Click Tif can also be supplied with barbed outlet option.

• Required punch size 2.5 mm (code – DITC).

• Minimum filtration requirement - 100 micron.

Applications:

• For orchards and vineyards, greenhouses, nurseries and landscape applications.

• For areas with harsh topographical conditions.

• Irrigation of pot-plants with single, two, four or multiple outlets.

Ordering Specifications:

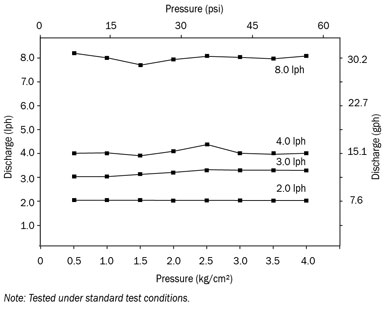

Performance Graph:
