Jain Tough Hose-TwinLine®

Features and Specifications:

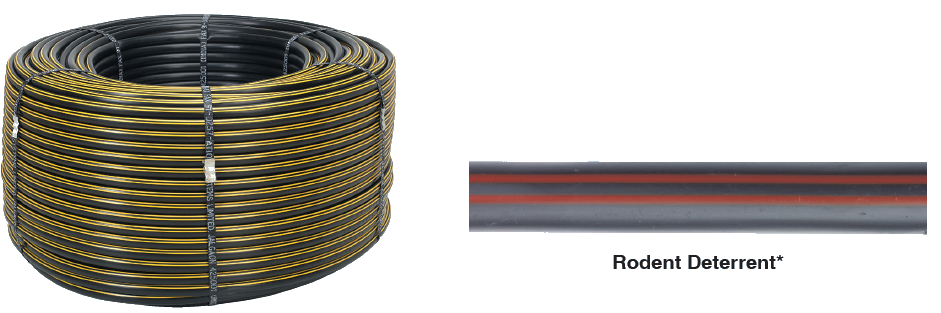

Black in color with two parallel yellow strips - ‘TwinLine®’. Also available in red stripes for rodent deterrent option.
Manufactured from virgin LLDPE using advanced extrusion technology.
Excellent characteristics of LLDPE provide durable tubing with close dimensional tolerances.
UV stabilized.
No environmental effects.
Smooth inner surface minimizes frictional losses.
Pre-punched tubing at specified distance and hole size can be supplied on demand (standard hole size is 2.9 mm).
On demand, can be supplied with rodent deterrent feature.
Manufactured as per IS / ISO/ ASAE / AS / ASTM standards.
Each batch is tested for the following parameters:

- Dimensional tolerances.
- Short term & long term hydraulic pressure.
- Heat reversion.
- Carbon black content.
- Environmental stress crack resistance (ESCR).
- Tensile Strength and Elongation.

Applications:

Used as laterals in drip irrigation system.
Used in greenhouses for high pressure foggers, sprayheads and jets application.

Jain Tough Hose - Twin-Line® Drip Polytube as per IS:12786

Code Diameter	Nominal ID	Inside Diameter	Min. Wall Thickness	Std. Coil Length	Avg. Weight per
Code Diameter	mm	mm	mm	m	kg.	lbs/100 ft.
Pressure Class 1
DT0121	12	10.8	0.6	100, 250, 500	20.09	1.35
DT0161	16	14.4	0.8	100, 250, 400	35.72	2.39
DT0201	20	18.2	0.9	250	50.50	3.38
DT0251	25	22.6	1.2	250	83.90	5.62
DT0321	32	29.0	1.5	100, 250	134.40	9.00
Pressure Class 2
DT0122	12	10.2	0.9	100, 250, 500	29.35	1.97
DT0162	16	13.8	1.1	100, 250, 400	48.15	3.23
DT0202	20	17.6	1.2	250	66.28	4.44
DT0252	25	21.6	1.7	250	116.37	7.80
DT0321	32	28.0	2.0	100, 250	176.27	11.81
Pressure Class 3
DT0123	12	9.6	1.2	100, 250, 500	38.07	2.55
DT0163	16	13.2	1.4	100, 250, 400	60.05	4.02
DT0203	20	17.0	1.5	250	81.52	5.46
DT0253	25	20.8	2.1	250	141.28	9.47
DT0323	32	27.0	2.5	100, 250	216.66	14.52
Jain Irrigation Systems Ltd. are the owners of Trade Mark “Twin-Line®”. Jain Irrigation Systems Ltd. has the statutory right to use the artistic work of two yellow or golden or red parallel stripes on a black tube for irrigation, under the Copyright Act 1957, India. * Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again. Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”.

Jain Tough Hose - Twin-Line®

Code Diameter	Nom. Dia.	Inside Diameter		Min. Wall Thickness		Working Pressure		Std. Coil Length		Avg. Weight per Coil
Code Diameter	mm	mm	inch	mm	inch	kg/cm²	psi	m	ft	kg.	lbs/100 ft
DTI13095	13	13.0	0.512	0.95	0.037	3.7	52	500	1640	38.93	2.61
DTI13110	13	13.0	0.512	1.10	0.043	4.2	59	500	1640	25.02	3.05
DTI13140	13	13.0	0.512	1.40	0.055	5.1	72	500	1640	31.94	3.97
DTI16090	16	16.0	0.630	0.90	0.035	3.0	42	300	984	44.68	2.99
DTI16110	16	16.0	0.630	1.10	0.043	3.5	49	300	984	55.26	3.70
DTI16140	16	16.0	0.630	1.40	0.055	4.3	61	300	984	71.56	4.79

Jain Tough Hose - Twin-Line® as per AS-2698-1 (Type 30)

Code Diameter	Nom.Dia.	Inside Diameter		Min. Wall Thickness		Std. Coil Length	Avg. Weight per Coil
Code Diameter	mm	mm	inch	mm	inch	m	g/m	lbs./100ft
DTI10100	10	09.8	0.385	1.0	0.039	300	31.73	2.12
DTI13120	13	12.7	0.500	1.2	0.047	300	49.00	3.28
DTI16120	16	15.8	0.622	1.2	0.047	200	59.95	4.02
DTI19130	19	18.9	0.744	1.3	0.051	200	77.15	5.17
DTI25150	25	25.2	0.992	1.5	0.059	200	127.65	8.55
DTI32200	32	31.5	1.240	2.0	0.078	100	196.80	13.19

Example: Inside diameter based tubing.
Jain Tough Hose - Twin Line® as per AS-2698-1 can also be supplied with Type 50 material.

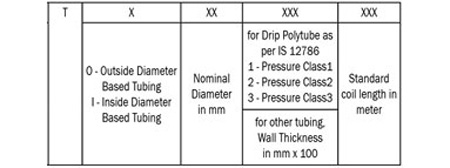

Ordering Specifications

Example: DTI13140500 - This code refers to Jain Tough Hose of nominal diameter 13 mm and minimum wall thickness of 1.4 mm with standard coil length of 500 m.

Note:

Please refer standard specification table while ordering.
Jain Tough Hose in any other wall thickness & / or coil length can be manufactured and supplied as a special order.
For ordering Jain Tough Hose with Rodent Deterrent features change the above code as ETI13140R500.
For ordering Jain Tough Hose white coloured tubing, please change the code as ETI13140500W.
For ordering Jain Tough Hose brown coloured tubing, please change the code as ETI13140500B.
For ordering Jain Tough Hose purple coloured tubing, please change the code as ETI13140500P.
For prepunch Jain Tough Hose change the code as,
