Trickle Stik™

Features and Specifications:

• Manufactured from high quality polymers.

• Holds the PE tube firmly at required position. Avoids dispositioning of PE tube.

• Distributes water evenly.

• Used with micro tube of 1.0 mm (0.036”) ID, 1.3 mm (0.05”) ID, 3.3 mm (0.13”) OD and 1.5 mm (0.06”) ID.

• Recommended operating pressure of 0.5 kg/cm2 (7 psi) for 1.00mm (0.036”)ID tubing and 0.35 kg/cm2 (5 psi) for 1.3mm (0.05”) and 1.5 mm (0.06”) ID tubing and for 60cm (24”) length of tubing.

• Easy to Install.

• Easy to Monitor.

Applications:

• Ideally used for irrigation of bag culture.

• Recommended to use where dispositioning of tubing is a problem.

Ordering Specifications:

Example: DTRS1024 - This code refers Trickle Stik™ with 1.0 mm (0.036”) ID tubing of 24” length.
Note: Any other tube length can be supplied on demand.

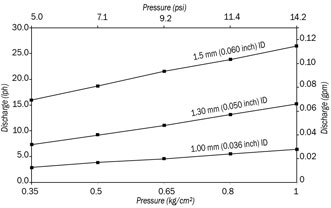

Performance Chart for 24" Length of Trickle Stik™:

Note : Tested under standard test conditions.
